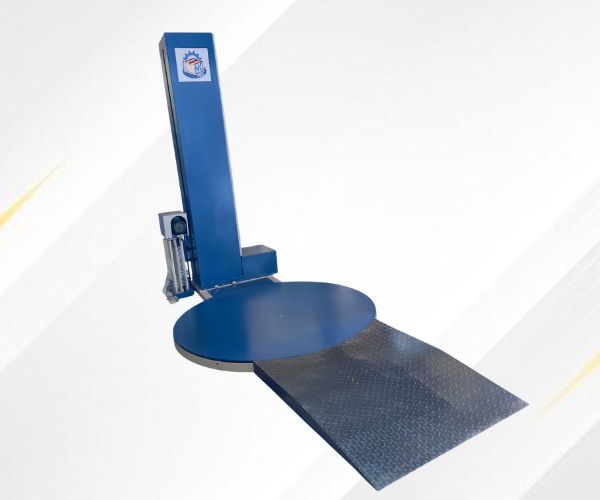

The NPW-01-FA Pallet Stretch Wrapping Machine is designed for efficient and secure packaging of palletized goods in industrial environments. It ensures excellent load stability by applying uniform stretch film wrapping, protecting products from dust, moisture, and damage during storage and transportation. Its advanced design helps improve packaging consistency while reducing manual effort.
Built for high performance and durability, the NPW-01-FA offers smooth operation, user-friendly controls, and reliable output for continuous use. It is ideal for warehouses, logistics centers, and manufacturing units looking to enhance productivity, minimize film wastage, and achieve cost-effective packaging solutions.
| Category | Parameter | Details |
| Performance | Turntable Speed | 0 to 15 RPM |
| Loads per Hour | 18 To 20/hr | |
| Wrapping Height | 2500 mm | |
| Max Loading Weight | 2000 kg | |
| Mechanical specification | Turntable Diameter | 1650 mm (Pallet Size: 1200 × 1200 mm) |
| Turntable Height | 80 mm | |
| Machine Length | 2650 mm | |
| Machine Width | 1650 mm | |
| Machine Height | 2800 mm | |
| Construction | MS Sheet, Laser Cut, Aluminium Alloy & Channel | |
| Structure Finish | MS Powder Coated | |
| Pallet Handling | Ramp for Loading/Unloading | |
| Shipping Weight | Approx. 850 kg | |
| Film System | Type | Power Pre-Stretch |
| Film Stretch | 250% to 300% (Adjustable) | |
| Film Specs | Film Roll OD | 250 to 300 mm |
| Core Size | 75 mm | |
| Film Roll Height | 20 Inch (standard size) | |
| Film Thickness | 29 to 50 Micron | |
| Electrical | Power Requirement | 380/440V, 50Hz, 3 Phase + Neutral |
| Power Consumption | 2.25 kW | |
| Controller | PLC + HMI (Delta / Siemens) with Recipe Function | |
| AC Drive (VFD) | Delta / Siemens | |
| Motor Make | Crompton | |
| Switchgear | Schneider make | |
| Cable | RR cable make | |
| Sensor | P&F make | |
| Turntable Motor | 2 HP,750W×1440rpm 3-phase, 750V/50Hz AC geared Motor 1:30 | |
| Film Elevator motor | 0.5HP, 250W×1440rpm 3 phase, 380V/50Hz AC geared Motor 1:80, | |
| Powered Pre stretch motor | 0.5HP, 250W X1440rpm 3-phase, 380V/50Hz AC geared Motor, 1:10 |
